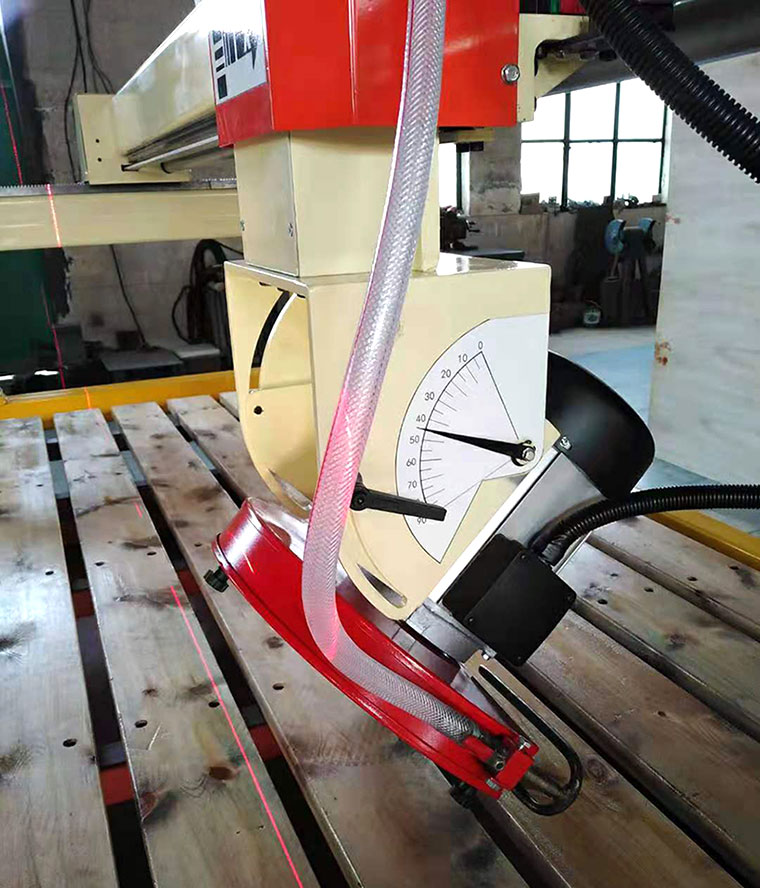

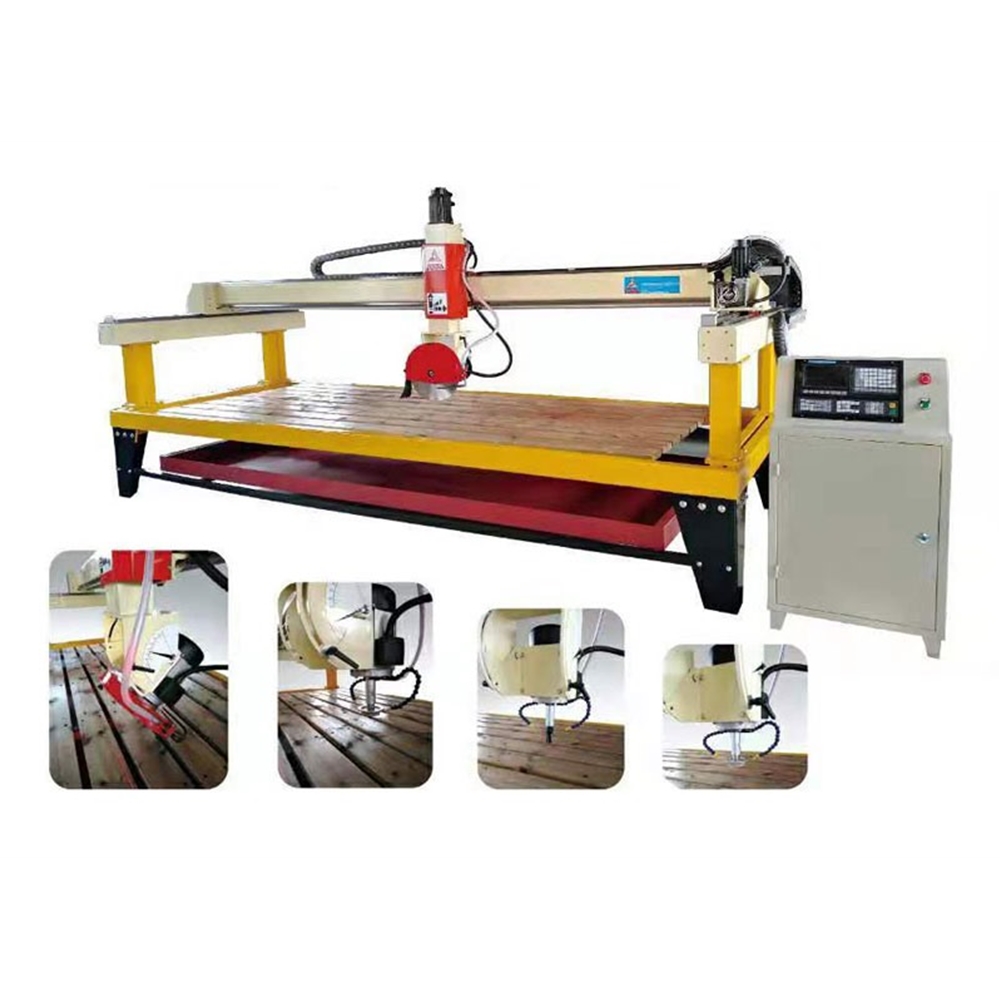

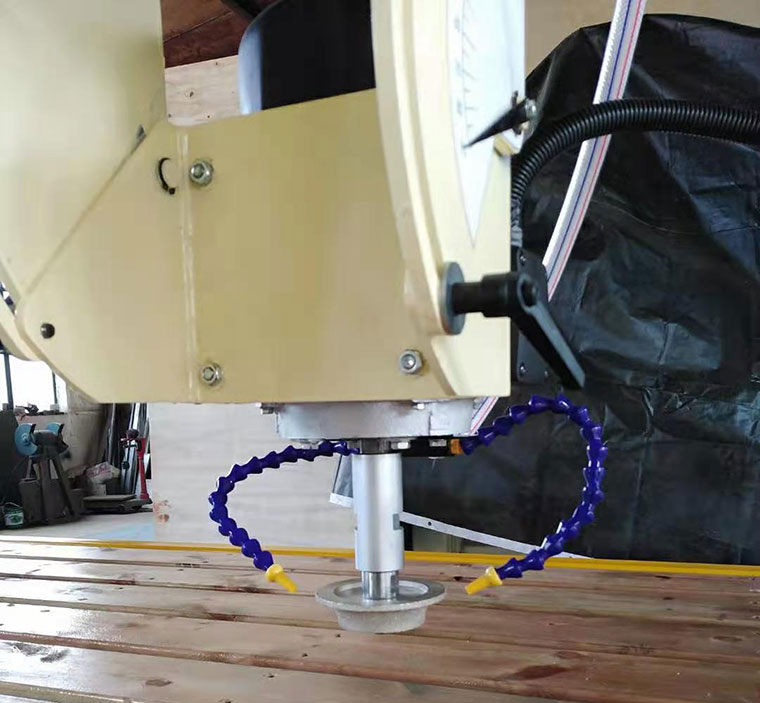

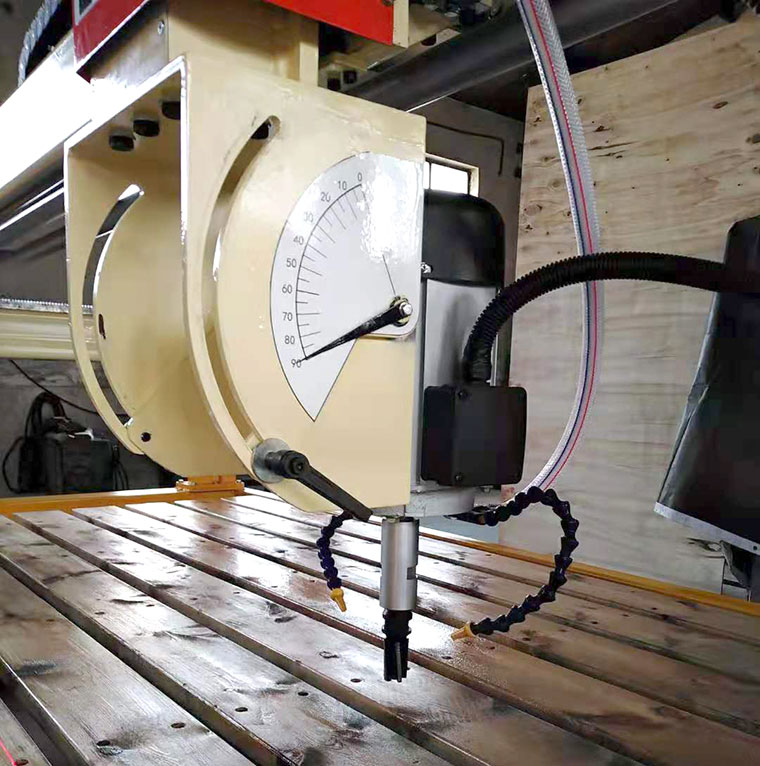

This machine can achieve three-axis linkage and manually adjust the saw blade 0-90 degrees through 4-axis B to achieve various complex stone processing; Its device functions include cutting edges, chamfering, grinding edges, digging various table faces, carving, etc. This machine is an ideal equipment for processing kitchen countertops
|
model |
SLWQ-3000 |
SLWQ-3500 |
SLWQ-4000 |
|
Workbench size |
2700×2000mm |
3200×2000mm |
3700×2000mm |
|
Blade cutting stroke (X-axis) |
2500mm |
3000mm |
3500mm |
|
Horizontal beam movement range (Y-axis) |
2000mm |
2000mm |
2000mm |
|
Vertical stroke of saw blade (Z-axis) |
280mm |
280mm |
280mm |
|
Blade tilting range (B-axis) |
0°-90° |
0°-90° |
0°-90° |
|
Motor Power |
7KW |
7KW |
7KW |
|
Saw blade speed |
800-600rpm |
800-600rpm |
800-600rpm |
|
Approximately weight |
800kg |
890kg |
1100kg |
|
Dimensions |
3550×2320×2030mm |
4050×2330×2030mm |
4550×2320×2030mm |
